Installation on Docker

Overview

This install option combines the following for installation on Docker on a single server, or on multiple separate servers:

• com.castsoftware.imaging.all.docker: CAST Console and CAST Viewer components via docker-compose (all on one server, or on two separate servers)
• a UI installer provided in com.castsoftware.imaging.all.docker for the CAST Node service for direct installation on Microsoft Windows (additional Nodes can be declared post install)

The CAST Core component is not included, but is required for each CAST Node. The CAST Storage Service/PostgreSQL instance component is included as a Docker image and will be used, however additional remote CAST Storage Services/PostgreSQL instances can also be declared post install.

Prerequisites

• Physical or virtual server
• 64bit Windows 10/11, Windows Server 2016/2019/2022, 64bit Linux (Red Hat or Debian derivative)
• 16GB RAM minimum (32GB RAM recommended)
• 256GB SSD
• JDK (≥ 17 LTS 64bit)
• Servers with fixed IP address / hostname recommended
• A Node service and CAST Core are required on a Microsoft Windows server (local or remote)
• Local administrator/root privileges
• A valid global license key
• A valid CAST Extend API key
• The following TCP ports should be available:

PORT_IMAGING=8083
PORT_GATEWAY=8090
PORT_CONSOLE=8091
PORT_AUTH_SERVICE=8092
PORT_KEYCLOAK=8096
PORT_CONTROL_PANEL=8098

For Docker on Linux

• Docker latest stable release
• docker-compose latest stable release

For Docker on Microsoft Windows

• Docker Desktop for Microsoft Windows - latest stable release
• Containers for Linux must be enabled
• Hyper-V and WSL2 modes are both supported (WSL2 is recommended if remote access to CAST Imaging is required)

Install CAST Console component

Download the latest release of the installer and unzip it anywhere on your local disk. Locate the .env file at the root of the unzipped files and open it in a text editor. Change only the following lines to:

• configure the server’s FQDN (fully qualified domain name) or its static IP address
• set the location of the three required folders: the paths need to point to a mapped network share drive or use a UNC path of the network share, for example: \shared\console\delivery

HOST_HOSTNAME=imaging.corp.domain.com
DELIVERY_FOLDER=\\shared\console\delivery
DEPLOY_FOLDER=\\shared\console\deploy
SHARED_FOLDER=\\shared\console\common-data

Now run the following command from the root of the unzipped files to pull the CAST Console component images from Docker Hub and start the containers:

docker-compose up -d

Check the status of the various services - there should be six in total:

docker ps

A successful installation will result in a functioning CAST Console.

Install CAST Viewer component

Run the following command from the imaging folder which can be found at the root of the unzipped installation files. This will install the required files, pull the CAST Viewer component images from Docker Hub and start the containers:

• Operating System
• Linux
• Microsoft Windows

./imagingsetup -ch imaging.corp.domain.com -cp 8098 -d /home/CAST/imaging  -i install

imagingsetup -ch imaging.corp.domain.com -cp 8098 -d  C:\CAST\imaging -i install

Where:

• -ch is the FQDN or IP address of the current server as defined in HOST_HOSTNAME in the .env file
• -cp is the PORT_CONTROL_PANEL port number as defined in the .env file
• -d is the path on disk where you would like to store the CAST Viewer data and configuration files

Check the status of the various services - there should be three in total specific to the CAST Viewer component:

docker ps

A a successful installation will result in a functioning CAST Viewer component declared in CAST Console.

http://HOST_HOSTNAME:8098

Install a CAST Node

To install a Node, download two components on your target Microsoft Windows server (this can be a server you have installed the Console/Viewer components on if it is a Microsoft Windows server, or it can be separate dedicated server). Both installers are UI based and should be installed in the order listed below:

• CAST Core (latest release)
• Dedicated CAST Node service - this is provided in an executable JAR file called AIP-Node-<version>.jar located at the root of the com.castsoftware.imaging.all.docker installer.

Double click the AIP-Node-<version>.jar to begin the installation and ensure that the highlighted fields in the image below are configured correctly:

• CAIP location refers to the CAST Core component installation on the local server
• Config server URL should point to http://HOST_HOSTNAME:PORT_CONTROL_PANEL/config using references from the .env file on the server on which the CAST Console component has been installed, e.g. imaging.corp.domain.com:8098/config.

A successful installation will result in a CAST Node declared in CAST Console. Check the following location to ensure your new CAST Node is visible:

http://HOST_HOSTNAME:8090/console/#/aic/manage/nodes

Initial start up configuration

When the install is complete, browse to the URL below and login using the default admin/admin credentials:

http://HOST_HOSTNAME:8090

You will be prompted to configure:

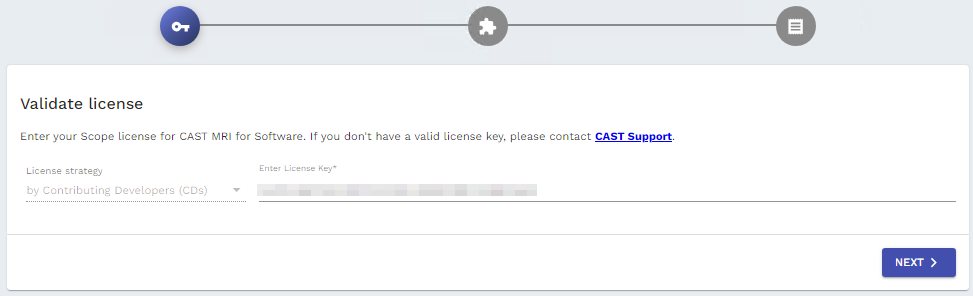

• the global license key:

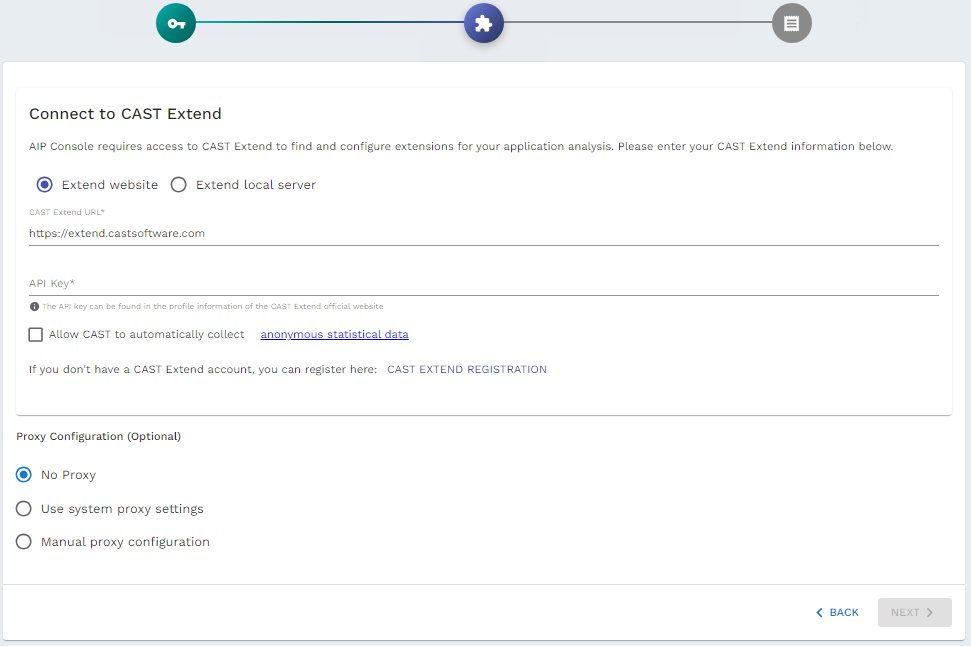

• CAST Extend settings (API key/proxy):

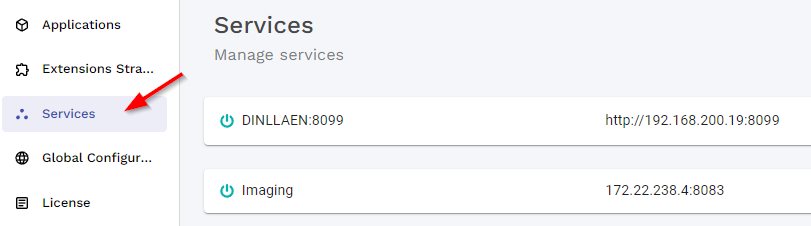

As a final check, browse to the URL below and ensure that you have at least one CAST Node and the CAST Viewer components listed:

http://HOST_HOSTNAME:8090/console/#/aic/manage/nodes

What is installed?

The following Docker containers will be created and are set to start automatically:

CAST Console:

• admin-center-v3
• aip-console-v3
• aip-sso
• auth-service-v3
• gateway-v3
• unified-postgres

CAST Viewer:

• imagingservice-v3
• imagingetl-v3
• imagingneo4j-v3

On each Node, two Microsoft Windows services:

• CAST AIP Console Standalone Service
• CAST AIP Node Log Service

What about data storage?

All analysis data will be stored in the folders you defined in the .env file.

What happens if a container does not start?

If a container fails to start, run the following command to display the container logs - this will give an indication of what may have gone wrong:

docker logs <container_name>

Uninstall process

CAST Console and CAST Viewer components

Run the following commands to stop both components:

• Operating System
• Linux
• Microsoft Windows

#CAST Console: must be run from the same folder as the docker-compose.yml file. Stops containers and removes containers, networks, volumes, and images created by `up`
docker-compose down
#CAST Viewer: must be run from the CAST Viewer installation folder
./imaging -s stop

#CAST Console: must be run from the same folder as the docker-compose.yml file. Stops containers and removes containers, networks, volumes, and images created by `up`
docker-compose down
#CAST Viewer: must be run from the CAST Viewer installation folder
imaging -s stop

Now run the following commands to completely remove all components:

#Remove all unused local volumes. Unused local volumes are those which are not referenced by any containers
docker volume prune
#Remove all unused containers, networks, images (both dangling and unreferenced)
docker system prune -a

Finally, delete the installer ZIP file the unzipped folder and any installation folders.

CAST Node and CAST Core component

Use the Microsoft Windows Add or remove programs feature to uninstall the components.

What is not removed?

• Analysis data files in \\server\share

If you intend to perform a clean install you should ensure that these items are removed first.

Known issues

See com.castsoftware.imaging.console Release Notes and com.castsoftware.imaging.viewer Release Notes.
